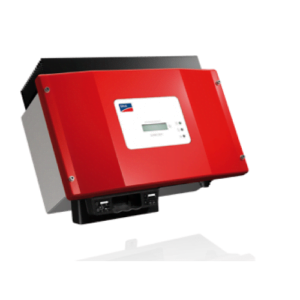

Sunny Boy 1200

Thanks to its galvanic isolation, The Sunny Boy 1200 is one from the series of universally applicable string inverters that can be used in the most diverse AC grids. The installation is made simple and easy using the integrated ESS DC switch-disconnector, thus, reducing the assembly costs. It is equipped with OptiTrac MPP-tracking process, and works well even under extreme conditions.

The device features:

  • DC plug system SUNCLIX
  • Tried and tested technology
  • Maintenance free due to convection cooling
  • For indoor and outdoor installation
  • Suitable for generator grounding
  • Integrated ESS DC switch disconnector
  • Galvanic isolation

Specifications

Input (DC)
Max. DC power (@ cos ϕ = 1)1320 W
Max. DC voltage400 V
MPP voltage range100 V – 320 V
DC nominal voltage120 V
Min. DC voltage / start voltage100 V / 120 V
Max. input current / per string12.6 A / 12.6 A
Number of MPP trackers / strings per MPP tracker1/2
Output (AC)
AC nominal power (@ 230 V, 50 Hz)1200 W
Max. AC apparent power1200 VA
Nominal AC voltage; range220, 230, 240 V;
180 V – 265 V
AC grid frequency; range50, 60 Hz; ± 4.5 Hz
Max. output current6.1 A
Power factor (cos ?)1
Phase conductors / connection phases1/1
Efficiency
Max. efficiency / Euro-eta92.1 % / 90.9 %
General data
Dimensions (W / H / D) in mm440 / 339 / 214
Weight23 kg
Operating temperature range-–25 °C … +60 °C
Noise emission (typical)≤ 41 dB(A)
Internal consumption (night)< 0.1 W
TopologyLF transformer
Cooling conceptConvection
Electronics protection rating / connection area (as per IEC 60529)IP65 / IP65
Climatic category (per IEC 60721-3-4)4K4H

Accessories

  • RS485 interface of type 485PB-NR
  • Bluetooth® Piggy Back BTPBINV-NR
  • Grounding set “Positive” ESHV-P-NR
  • Grounding set “Negative” ESHV-P-NR
