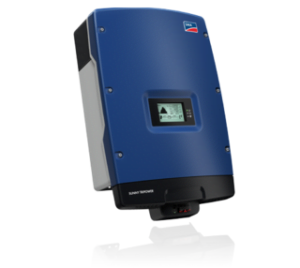

Sunny Tripower 9000TL

sunny tripower 5k-12k

The Sunny Tripower 9000TL is now better than ever. While it is perfectly suited for the design of the traditional residential PV system up to the higher power outage range, it also covers a broad spectrum of applications. With the integration of proven Optiflex technology, it is highly flexible and delivers maximum yields with a top efficiency rating and OptiTrac Global Peak, thanks to the asymmetrical multistring. The Sunny Tripower 9000TL is the ideal product solution for all kinds of applications ranging from home usage, small-scale PV farms, and larger PV rooftop systems.

  • Maximum efficiency of 98%
  • Integrated grid management functions
  • Reactive power supply
  • OptiCool for active temperature management
  • DC input voltage of up to 1,000 V
  • SMA Webconnect
  • Bluetooth Communication
Input (DC)
Max. DC power (@ cos ϕ = 1)9225 W
Max. input voltage1000 V
MPP voltage range / rated input voltage370 V ... 800 V / 580 V
Min. input voltage / initial input voltage150 V / 188 V
Max. input current input A / input B15 A / 10 A
Max. input current per string input A / input B15 A / 10 A
Number of independent MPP inputs / strings per MPP input2 / A:2; B:2
Output (AC)
Rated power (@ 230 V, 50 Hz)9000 W
Max. apparent AC power9000 VA
AC nominal voltage3 / N / PE; 220 / 380 V
3 / N / PE; 230 / 400 V
3 / N / PE; 240 / 415 V
Nominal AC voltage range160 V – 280 V
AC power frequency / range50 Hz, 60 Hz / -5 Hz … +5 Hz
Rated power frequency / rated grid voltage50 Hz / 230 V
Max. output current13.1 A
Power factor at rated power1
Adjustable displacement power factor0.8 overexcited ... 0.8 underexcited
Feed-in phases / connection phases3/3
Efficiency
Max. efficiency/ European efficiency98 % / 97.6 %
General data
Dimensions (W/H/D)470 / 730 / 240 mm
(18.5 / 28.7 / 9.5 inches)
Weight37 kg (81.6 lb)
Operating temperature range-25°C…+60°C
(-13°F…+140°F)
Noise emission (typical)40 dB(A)
Self-consumption (night)1 W
Topology / cooling conceptTransformerless / OptiCool
Degree of protection (according to IEC 60529)IP65
Climatic category (according to IEC 60721-3-4)4K4H
Maximum permissible value for relative humidity (non-condensing)100%
  • 485 Interface Data Module Type B
  • SMA Power Control Module PWCBRD-10
